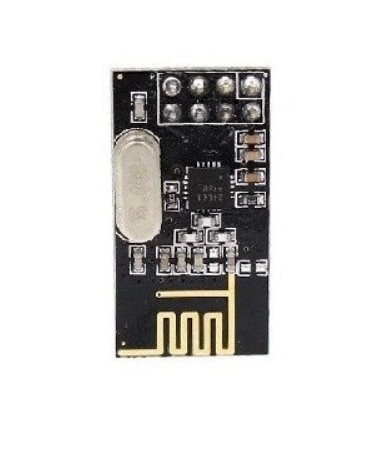

NRF24L01+ 2.4GHz TX/RX Module langaton lähetin/vastaanotin
Etusivu > Arduinot, moduulit jne > WiFi & LAN
NRF24L01+ 2.4GHz TX/RX Module langaton lähetin/vastaanotin. Yleiskäyttöinen wireless-moduuli erilaisten laitteiden ohjaukseen langattomasti.

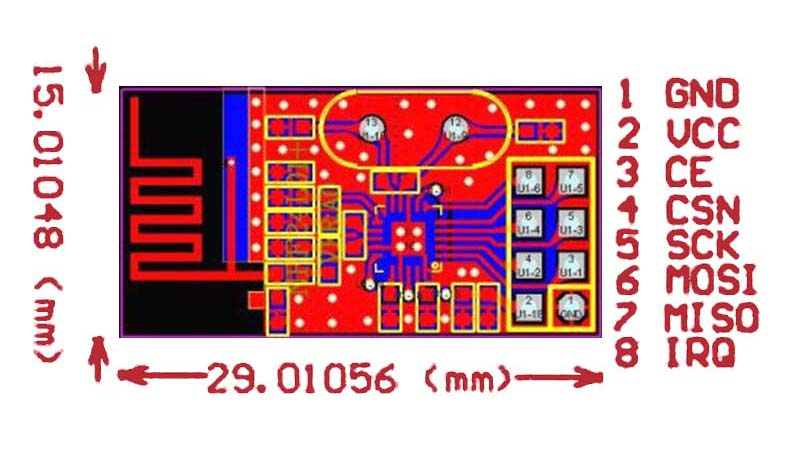

- Size:28.9*15.2mm
- Low operating voltage: 1.9~3.6V
- Maximum operating speeds: 2Mbps
- 125 channels
- Standard DIP pass-through interface for embedded applications

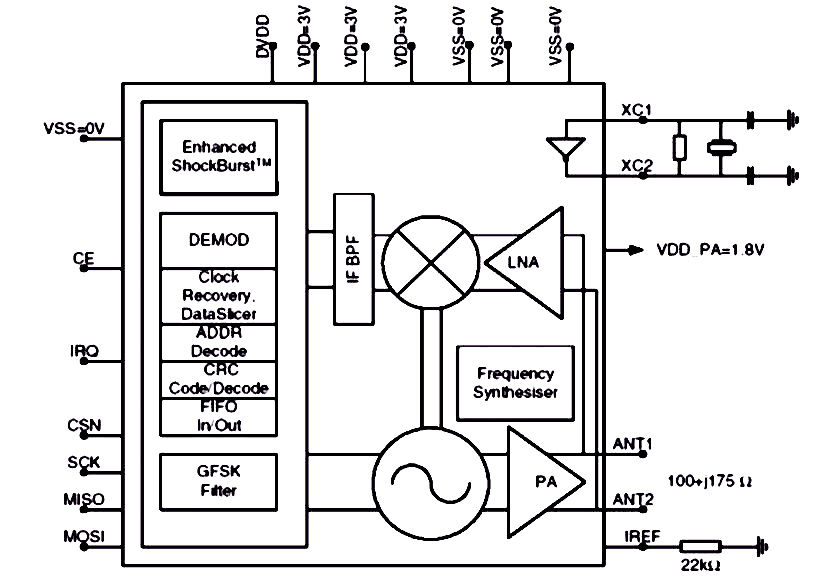

NRF24L01 is a single-chip transceiver chip operating in the 2.4-2.5GHz world wide ISM frequency band. The output power channel selection and protocol settings can be set through the SPI interface with extremely low current consumption. When working in transmission mode with a transmission power of 6dBm, the current consumption is 9.0mA. The acceptance mode is 12.3mA, and the current consumption mode is lower in power off mode and standby mode.
