Sensor Shield V 5.0 mm. Arduino UNOlle
Sensor Shield V 5.0 mm. Arduino UNOlle
Sensor Shield V 5.0 mm. Arduino UNOlle
Product code
MBG-020
EAN
0000000067386
Delivery costs from
7,00 €
5,58 € VAT 0,00 %
pcs

Sensor Shield V 5.0 helpottaa erillaisten antureiden, servojen, LCD-näyttöjen ja muiden lisätarvikkeiden liittämistä.

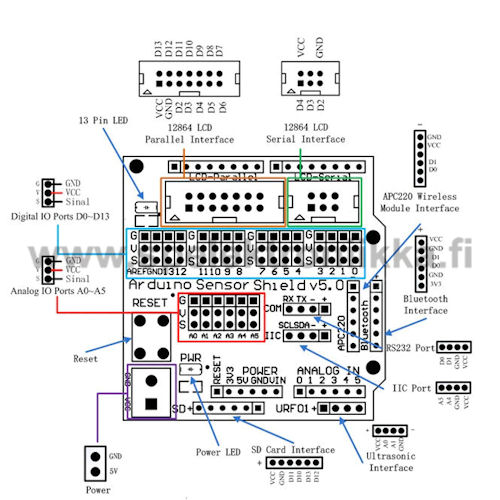

  • Cooperation with UNO, LEONARDO, MEGA
  • interface : RS232 (TTL), I2C
  • Digital IO Ports D0-D13
  • Analog IO Ports A0-A5
  • Possibility to connect servos
  • Connector outputs:
    • Bluetooth
    • SD card reader
    • APC220 RF wireless communication module
    • Ultrasonic sensor
    • lCD displays (Serial and parallel interface)
    • Power LED
    • Screw connectors for power supply
  • RESET button

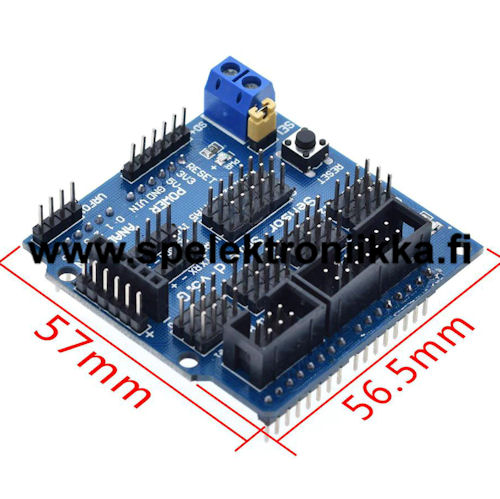

  • Dimensions: 57 x 57mm
