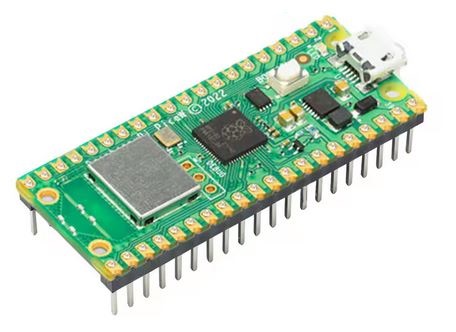

Raspberry Pi Pico W (pre-soldered headers)

Etusivu > Arduinot, moduulit jne > Kehitysalustat

Raspberry Pi Pico W (pre-soldered headers)
Raspberry Pi Pico W (pre-soldered headers)
Raspberry Pi Pico W (pre-soldered headers)
Tuotekoodi
MOD-Pico-W
EAN
0000000280013
Toimituskulut alk.
18,00 €
14,34 € ALV 0,00 %
kpl

The main chip on board is the RP2040 made by Raspberry Pi and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz. WiFi is enabled via the use of an Infineon CYW43439.

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of onboard Flash memory
  • Infineon CYW43439 wireless chip
    • IEEE 802.11n wireless LAN
    • Bluetooth 5.2
    • WPA3
    • SoftAP (up to 4 clients)
    • Onboard antenna licenced from ABRACON (connected via SPI to the RP2040)
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Real-time clock (RTC)
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support
  • Dimensions (WxLxH) 21mm x 51.3mm x 3.9mm
