CYD512 Bipolar Hall Effect Switch latch hall anturi.

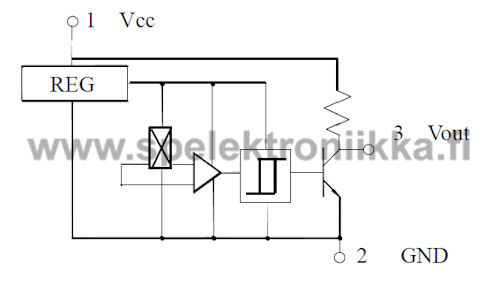

CYD512 Hall Effect latch ICs are composed of a reverse protector, voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output (bipolar latch) on a single silicon chip. ICs can convert the changeable magnetic field signal into digital voltage output.
Operating Temperature: | -40°C~ +150°C |
Max. Supply current/voltage: | 8 mA |
Operation Point: | 1.0 mT ~ 6.0 mT |
Release Point: | -6.0mT ~ -1.0mT |
Hysteresis: | 2.0 mT ~ 7.0 mT |
Power Supply: | 4.5V ~ 18V DC |

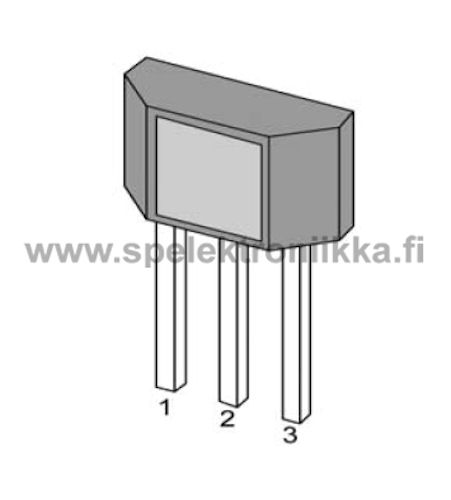

Package/Size: | TO92/4.5x4.0x2.0mm |
