Raspberry Pi Pico H (pre-soldered headers)

Etusivu > Arduinot, moduulit jne > Kehitysalustat

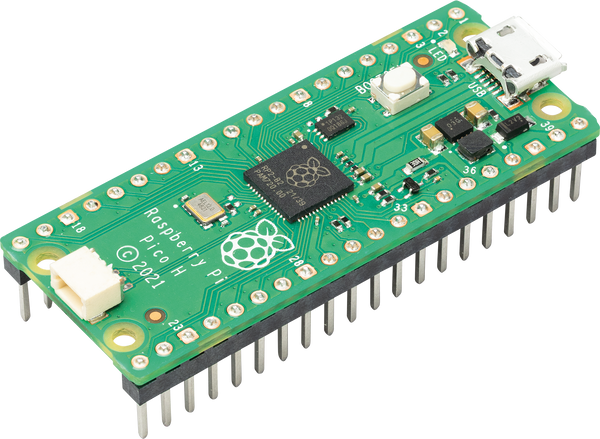

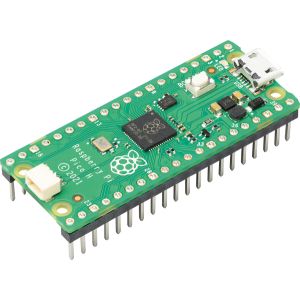

Raspberry Pi Pico H (pre-soldered headers)
Raspberry Pi Pico H (pre-soldered headers)
Raspberry Pi Pico H (pre-soldered headers)
Tuotekoodi
MOD-Pico-H
EAN
0000000279987
Toimituskulut alk.
14,90 €
11,87 € ALV 0,00 %
kpl

Form factor: 21 mm × 51 mm

CPU: Dual-core Arm Cortex-M0+ @ 133MHz

Memory: 264KB on-chip SRAM; 2MB onboard QSPI Flash

Interfacing: 26 GPIO pins, including 3 analogue inputs

Peripherals:

  • 2 × UART
  • 2 × SPI controllers
  • 2 × I2C controllers
  • 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and

Device Support: 8 × PIO state machines

Input Power: 1.8–5.5V DC

Operating Temperature: -20°C to +85°C

Pico H is the same as the original Raspberry Pi Pico. There are no functional differences between them. The main difference is that the old gold-plated castellated holes are removed, and the header pins are pre-soldered.

Another major difference is the new debug connector. The original Pico has a 2.54mm standard header pi for the debug. While the new Pico H has a small, keyed, 3-pin SM03B-SRSS-TB connector which can be used for either UART or 2-wire serial debug interfaces. Everything else including physical dimensions and pinout is the same as the original Pico.
