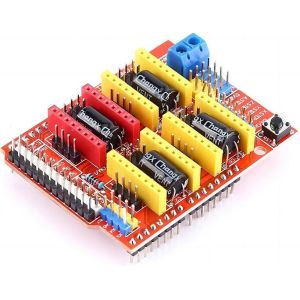

Arduino UNO yhteensopiva CNC Shield v3

Etusivu > Arduinot, moduulit jne > Shieldit

Arduino UNO yhteensopiva CNC Shield v3
Tuotekoodi
MBG-045
EAN
0000000029445
Saatavilla
Saatavilla
Toimituskulut alk.
9,90 €
7,89 € ALV 0,00 %
kpl

Arduino UNO yhteensopiva CNC Shield v3 paikat neljälle A4988 tai DRV8825 ohjainmoduulille. Askelmoottoreiden ohjaukseen mm. CNC -koneet, 3 -D tulostimet jne ...

  • CNC Shield for Arduino allows you to connect
  • 4 stepper motors for X, Y, Z, X-Can axes - (additional drivers A4988, DRV8825 or others required)
  • Allows control of direction of rotation and speed
  • 2 x ends for each axis - 6 in total
  • Milling machine spindle control - oborty and direction
  • Coolant or cooktop control
  • Control buttons
  • Circuit easy to assemble - just plug into Arduino
  • Shield allows the connection of an additional power supply, thus separating the power supply to the motors from the power supply to the logic.
  • Works with GRBL 0.8c software - https://github.com/grbl/grbl
  • The board has a description of the leads which makes it easy to connect correctly.
  • Power supply for motors 12-36V DC (depending on the motor controller)
