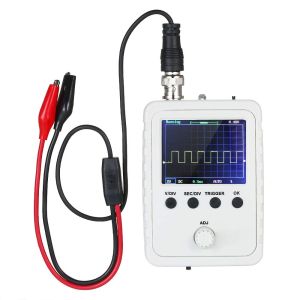

0-200kHz pieni käsioskilloskooppi.
Hauenleukamittajohdot sekä 100MHz 1X/10X probe sisältyy pakettiin.
Verkkolaitetta ei mukana. Verkkolaitteeksi käy 9VDC / min. 200mA verkkolaite 2.1/5.5mm plugilla (keskinasta positiivinen).
Specification:
Product Name: Digital Oscilloscope
Product color:As picture show
Product size: 105 x 75 x 22 mm
Screen size: 52 x 40 mm / 2 x 1.57 inches.
Maximum sampling rate in real time: 1 MSa/s
Analog bandwidth: 0-200kHz
Sensitivity range: 5mV/div-20V/div
Maximum input voltage: 50 Vpk (1X probe).
Input impedance: 1M Ohm/20pF
Accuracy: 12 bit
Record length: 1024 points
Pairing modes: DC / AC / GND
Time base range: 500s/Div - 10us/Div
Trigger modes: auto, normal and single.
Trigger position: middle of buffer
Supply voltage: DC 9V (8-10V).
Power consumption: ~120mA 9V.
Base range: 10μs/div-50s/div (progressive around 1-2-5)
