TCRT5000 IR heijastusanturi moduuli

Etusivu > Arduinot, moduulit jne > Liike- / etäisyys- / asentoanturit

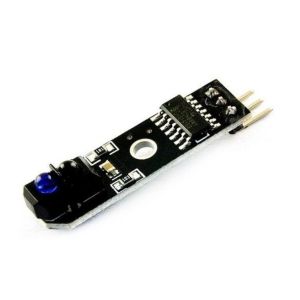

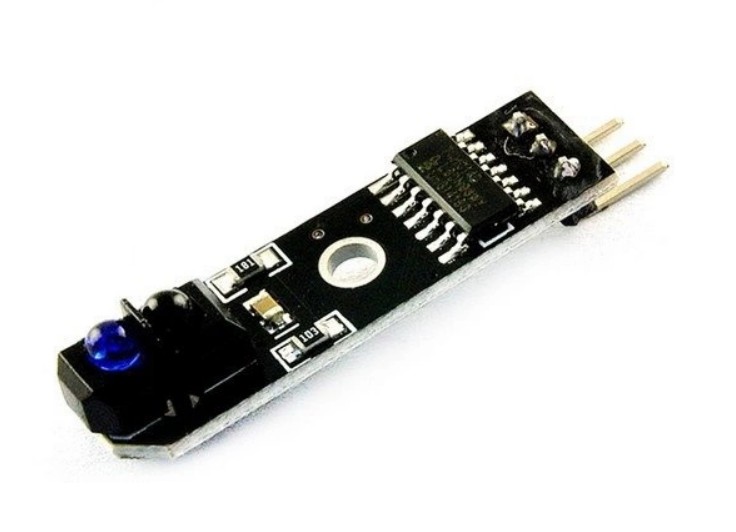

TCRT5000 IR heijastusanturi moduuli
TCRT5000 IR heijastusanturi moduuli
TCRT5000 IR heijastusanturi moduuli
Tuotekoodi
MCF-055
EAN
0000000241601
Toimituskulut alk.
2,80 €
2,23 € ALV 0,00 %
kpl

Tracker Sensor Obstacle Avoidance Module. Oivallinen viivanseurantaan; valkoisella viivalla ykköstila, mustalla viivalla nollatila. Digitaalilähtö.

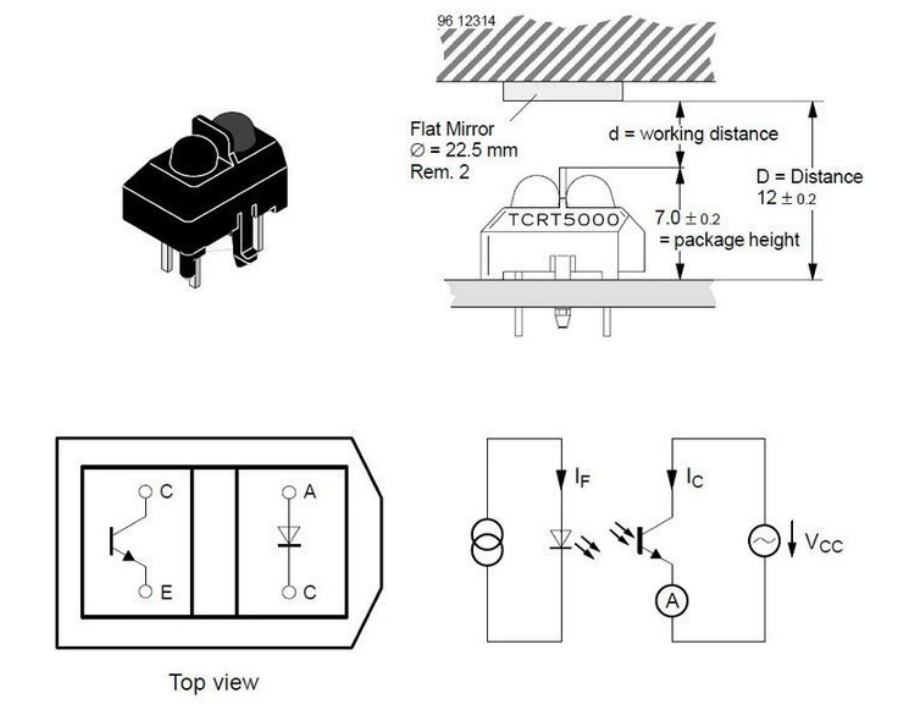

  • Universal reflective (optical) sensor. The transmitter is an IR diode and the receiver is a phototransistor (TCRT5000 kit).
  • Thanks to the comparator, the module has a binary output (D0) on which there is a low level (0V) or high level (5V - supply voltage).
  • Sensor enables object detection at distances up to 12mm.
  • The module has an output: digital
  • Power supply: 3.3V - 5V
  • Range: 1mm - 25mm
  • Current consumption max 20mA
  • Operating temperature 10-30*C
  • Connector: goldpin, spacing 2.54mm
  • Dimensions: 30 x 10 mm
  • digital (binary D0),
  • vcc power supply (+3.3V - 5V)
  • GND (0V ground)





tech
