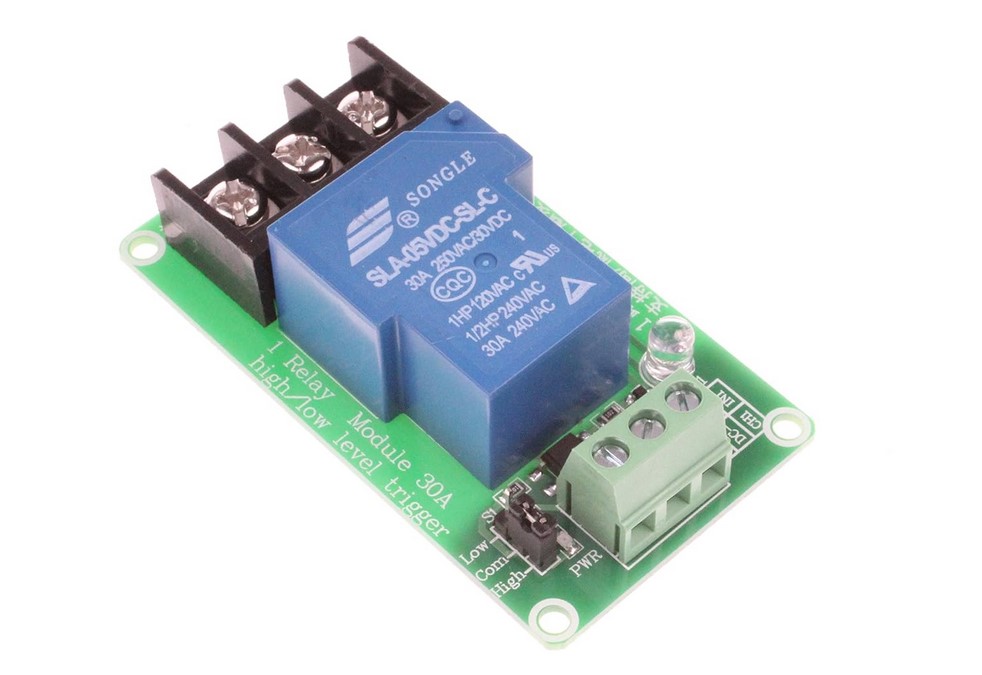

Relekortti 1-channel 5VDC/30A optoerottimella

1 -kanavainen relekortti 5VDC ohjauksella ja optoerottimella. High/low level trigger, valitaan jumpperilla. Releen virrankesto 30A 30VDC. Kortti ei ole ammattikäyttöön, joten älä käytä verkkojännitteen ohjaamiseen tai ohjaa yli 50VAC kuormaa. Ruuviterminaalit.

1. The module adopts high-quality genuine 30A relay, the maximum load of a normally open interface: AC 250V / 30A, DC 30V / 30A;
2. It uses chip optocoupler isolation, strong driving ability, stable performance; Trigger current of 5mA ;.
3. The operating voltage of the module is 5V
4. The module can be jumper activated to set a high or low level.
5. All interfaces can be directly connected through the terminal block, which is very convenient.
6. Module size: (length * width * height) 72mm * 40mm * 24mm
7. Product net weight: about 46g

Interface description:
1. DC +: module DC power supply positive (trigger terminal voltage positive)
2.DC-: module DC power supply negative (trigger terminal negative voltage)
3. IN: signal trigger end (the default trigger voltage is the same as the power supply)
4.High / Low edge trigger mode selection, when the jumper is connected with the L terminal, the terminal is low edge trigger, and when connected to the H terminal it turns high level
5. Normally closed end (NC): Relay normally closed.
6. Common (COM): common relay
7. Normally open (NO): The relay is normally open.
