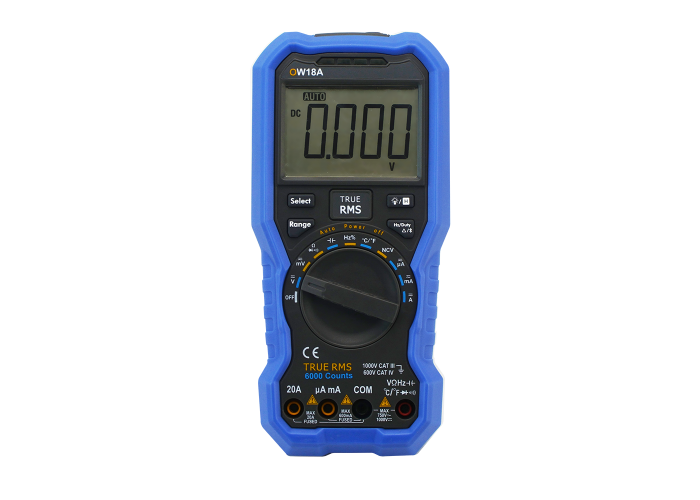

Owon OW18A true RMS yleismittari on kohtuuhintainen mutta monipuolinen työväline elektroniikkaharrastajalle.
Digits & counts 3 5/6 & 6000
Voltage measurement DC: 0.1 V ~ 1000 V ±(~0.5%+2dig) AC: 1 mV ~ 750 V ±(~0.8%+3dig)
Current measurement DC: 0.01 µA ~ 10 A ±(~0.8%+2dig) AC: 0.01 mA ~ 10 A ±(~1.2%+3dig)
Precision resistance 0.1 Ω ~ 60 MΩ ±(~0.8%+2dig)
Precision capacity 0.01 nF ~ 60.00 mF ±(~2.5%+3dig)
Frequency measurement 0.001 Hz ~ 10 MHz ±(~0.8%+2dig)
Temperature measurement -50 ~ 400 °C ±(~2.5%+3dig)
Auto-scaling
True-RMS
Input protection
No Datalogging
No Bluetooth
Safety certification 600 V (CAT IV), 1000 V (CAT III)
Power supply 9 V block battery
Screen size 69 x 52 mm
Dimensions 196 x 88.5 x 56 mm
Weight 320 gram
The OW18A multimeters come with:
-Test leads
-K-type thermocouple
- 9V battery
